High voltage squirrel-cage induction motors are designed and produced according to IEC international standard. They are made of high quality cast iron or steel plate with good appearance and performance.

Power range: 160KW~1800KW

Frame range: H315~H560

Protection:IP55/IP54/FIP44

Cooling: IC411

Mounting: B3, B35,V1

Duty: S1

Power condition: ±5% voltage change rate, ±2% frequency change rate, ±5%

total change rate with voltage and frequency

Motors can rotate bidirectionally (except 2 pole motors).

2 pole motors only can be drove with coupling.

Full and terminal voltage start can’t lower than 85% stable start.

Product advantages

In order to keep good stable performance and quality, experienced design engineers are employed.

Windings are processed with VPI to keep stable insulation.

Specific requirements can be designed.

Vertical motors with big axial force

Thermal protection and vibration detector

Special mounting and shaft dimensions

Low vibration and low noise

PT100 bearing and temperature detecting

Special painting

Please note rated power, speed, voltage, frequency, mounting, rotation (by shaft side) when ordering motors. Please remark when requiring, if there are special requirements, such as non-standard power, voltage, frequency, mount dimensions, altitude, high locked-rotor torque, double shafts, etc.

APPLICATIONS

Motors can be applied to all kinds of machines, such as machine tool, air compressor, pump, ventilation, reduction gear, transmission belt, mining equipment, metallic equipment. However, motors can’t be used with inflammable, explosive and corrosive working site.

Product technical standards

Please check with OMEC engineers

Product use environment

环境
适台IP55防护等级的安装
低于或等于海拔i1000米
环境温度在-15℃-40℃
相对湿度

Operating Environment
Suitable for IP55 installations
Altitude not exceed 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

温度 Temperature	相对湿度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果环境温度和海拔高度不同，电机功率要考虑以下系数作选型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

Y2 6kV(6.6kV) Series techincal data
Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT
						Full Load 6kV	Full Load 6.6kV	Locked Rotor	Full Load	Locked Rotor	Pull Out
	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y₂315X1-2	185	250	2980	94.1	84.0	22.5	20.5	700	60	70	200	3.3	1740
Y₂315X2-2	200	270	2980	94.3	84.0	24.3	22.1	700	65	70	200	3.5	1800
Y₂315X3-2	220	295	2980	94.4	84.0	26.7	24.3	700	72	70	200	3.7	1860
Y₂315X4-2	250	335	2980	94.4	84.0	30.3	27.6	700	82	70	200	4.0	1930
Y₂315X5-2	280	375	2980	94.4	84.0	34.0	30.9	700	92	70	200	4.3	2000
Y₂355X1-2	315	420	2980	94.6	84.0	38.1	34.7	700	103	70	200	6.5	2240
Y₂355X2-2	355	475	2980	94.7	86.0	41.9	38.1	700	116	70	200	7	2340
Y₂355X3-2	400	535	2980	94.7	86.0	47.3	43.0	700	131	70	200	7.5	2440
Y₂355X4-2	450	605	2980	94.8	86.0	53.1	48.3	700	147	70	200	8	2550
Y₂400X1-2	500	670	2980	95.2	86.0	58.8	53.4	700	164	70	200	12	3200
Y₂400X2-2	560	750	2980	95.4	86.0	65.7	59.7	700	183	70	200	12.5	3320
Y₂400X3-2	630	845	2982	95.6	87.0	72.9	66.3	700	206	70	200	13	3470
Y₂400X4-2	710	950	2982	95.7	87.0	82.1	74.6	700	232	70	200	14	3650
Y₂450X1-2	800	1070	2982	95.8	87.0	92.4	84.0	700	261	70	200	21	4650
Y₂450X2-2	900	1205	2982	95.9	87.0	103.8	94.4	700	294	70	200	22	4830
Y₂450X3-2	1000	1340	2982	96.1	88.0	113.8	103.4	700	327	70	200	23	5010
Y₂450X4-2	1120	1500	2982	96.2	88.0	127.3	115.7	700	366	70	200	24	5200
Y₂315X1-4	185	250	1485	94.3	84.0	22.5	20.4	650	121	80	200	6.0	1750
Y₂315X2-4	200	270	1485	94.3	84.0	24.3	22.1	650	131	80	200	6.5	1800
Y₂315X3-4	220	295	1485	94.5	84.0	26.7	24.2	650	144	80	200	7	1870
Y₂315X3-4	250	335	1485	94.5	84.0	30.3	27.6	650	164	80	200	7.5	1940
Y₂315X3-4	280	375	1485	94.5	84.0	33.9	30.9	650	184	80	200	8.5	2085
Y₂355X1-4	315	420	1485	94.6	84.0	38.1	34.7	650	207	80	200	11	2380
Y₂355X2-4	355	475	1485	94.7	84.0	42.9	39.0	650	233	80	200	12	2490
Y₂355X3-4	400	535	1485	94.9	85.0	47.7	43.4	650	262	80	200	13	2620
Y₂355X4-4	450	605	1485	95.0	85.0	53.6	48.8	650	295	80	200	14	2770
Y₂400X1-4	500	670	1485	95.1	85.0	59.5	54.1	650	328	80	200	20	3250
Y₂400X2-4	560	750	1485	95.3	85.0	66.5	60.5	650	367	80	200	21	3400
Y₂400X3-4	630	845	1485	95.4	86.0	73.9	67.2	650	413	80	200	23	3580
Y₂400X4-4	710	950	1485	95.6	86.0	83.1	75.5	650	466	80	200	25	3820
Y₂450X1-4	800	1070	1485	95.8	86.0	93.4	84.9	650	525	80	200	39	4970
Y₂450X2-4	900	1205	1485	96.0	86.0	104.9	95.4	650	591	80	200	42	5190
Y₂450X3-4	1000	1340	1488	96.0	86.0	116.6	106.0	650	655	80	200	45	5480
Y₂450X4-4	1120	1500	1488	96.1	86.0	130.4	118.6	650	733	80	200	49	5780
Y₂500X1-4	1250	1680	1488	96.2	86.0	145.4	132.2	650	819	80	200	63	6620
Y₂500X2-4	1400	1880	1488	96.3	86.0	162.7	147.9	650	917	80	200	67	6900
Y₂500X3-4	1600	2140	1488	96.4	87.0	183.6	166.9	650	1048	70	200	73	7280
Y₂560X1-4	1800	2410	1488	96.4	87.0	206.5	187.8	650	1179	70	200	132	9100
Y₂560X2-4	2000	2680	1488	96.4	87.0	229.5	208.6	650	1310	70	200	152	9640
Y₂315X1-6	185	250	1485	93.3	80.0	23.9	21.7	650	121	80	200	9.5	2050
Y₂315X2-6	200	270	1485	93.4	80.0	25.8	23.4	650	131	80	200	10	2120
Y₂315X3-6	220	295	1485	93.5	80.0	28.3	25.7	650	144	80	200	10.5	2200
Y₂355X1-6	250	335	985	93.6	80.0	32.1	29.2	600	247	80	200	15.5	2600
Y₂355X2-6	280	375	985	93.8	80.0	35.9	32.6	600	277	80	200	16.5	2720
Y₂3553-6	315	420	985	94.0	80.0	40.3	36.6	600	312	80	200	18	2830
Y₂400X1-6	355	475	988	94.7	82.0	44.0	40.0	600	350	80	200	28	3320
Y₂400X2-6	400	535	988	94.9	82.0	49.5	45.0	600	395	80	200	31	3500
Y₂400X3-6	450	605	988	95.1	83.0	54.9	49.9	600	444	80	200	34	3740
Y₂400X4-6	500	670	988	95.1	83.0	61.0	55.4	600	493	80	200	37	3920
Y₂450X1-6	560	750	988	95.4	83.0	68.1	61.9	600	552	80	200	43	4620
Y₂450X2-6	630	845	988	95.6	83.0	76.4	69.5	600	621	80	200	46	4840
Y₂450X3-6	710	950	990	95.7	83.0	86.0	78.2	600	699	80	200	50	5060
Y₂450X4-6	800	1070	990	95.8	83.0	96.8	88.0	600	787	80	200	54	5360
Y₂500X1-6	900	1205	990	96.0	83.0	108.7	98.8	600	886	80	200	74.5	6470
Y₂500X2-6	1000	1340	990	96.0	83.0	120.8	109.8	600	984	80	200	79.5	6750
Y₂500X3-6	1120	1500	990	96.1	84.0	133.5	121.4	600	1102	70	200	84.5	7030
Y₂500X4-6	1250	1680	990	96.2	84.0	148.9	135.3	600	1230	70	200	91	7410
Y₂560X1-6	1400	1880	990	96.3	84.0	166.5	151.4	600	1378	70	200	172	9020
Y₂560X2-6	1600	2140	990	96.4	84.0	190.1	172.9	600	1575	70	200	188	9540
Y₂355X1-8	160	215	738	93.4	76.0	21.7	19.7	550	211	80	200	14	2500
Y₂355X2-8	185	250	738	93.5	76.0	25.1	22.8	550	244	80	200	15	2590
Y₂355X3-8	200	270	738	93.4	76.0	27.1	24.6	550	264	80	200	16	2750
Y₂355X4-8	220	295	738	93.5	76.0	29.8	27.1	550	290	80	200	17	2820
Y₂355X5-8	250	335	738	93.7	77.0	33.3	30.3	550	330	80	200	18	2900
Y₂400X1-8	280	375	738	93.9	77.0	37.3	33.9	550	370	80	200	29	3300
Y₂400X2-8	315	420	740	94.1	78.0	41.3	37.5	550	415	80	200	31.5	3480
Y₂400X3-8	355	475	740	94.3	78.0	46.4	42.2	550	467	80	200	35	3720
Y₂400X4-8	400	535	740	94.3	78.0	52.3	47.6	550	527	80	200	37.5	3900
Y₂450X1-8	400	535	740	94.5	78.0	52.2	47.5	550	527	80	200	40	4300
Y₂450X2-8	450	605	740	94.7	78.0	58.6	53.3	550	593	80	200	42	4520
Y₂450X3-8	500	670	742	94.9	79.0	64.2	58.3	550	657	80	200	45	4820
Y₂450X4-8	560	750	742	95.0	79.0	71.8	65.3	550	735	80	200	51	5040
Y₂450X4-8	630	845	742	95.0	80.0	79.8	72.5	550	827	80	200	58	5480
Y₂500X1-8	630	845	742	95.4	80.0	79.4	72.2	550	827	80	200	81	5800
Y₂500X2-8	710	950	742	95.5	80.0	89.4	81.3	550	932	80	200	98	6550
Y₂500X3-8	800	1070	745	95.6	81.0	99.4	90.4	550	1046	70	200	105	6830
Y₂500X4-8	900	1205	745	95.6	81.0	111.8	101.7	550	1177	70	200	116	7300
Y₂560X1-8	1000	1340	745	95.7	81.0	124.1	112.9	550	1308	70	200	162	8690
Y₂560X2-8	1120	1500	745	95.8	81.0	138.9	126.3	550	1465	70	200	172	9000
Y₂560X3-8	1250	1680	745	95.9	81.0	154.8	140.8	550	1635	70	200	188	9520

Y2 10kV(11kV) Series techincal data
Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia (J)	Approx WT

						Full Load 10kV	Locked Rotor 11kV	Locked Rotor	Full Load	Locked Rotor	Pull Out
	kW	(HP)	RPM	%	%	A	A	%FLC	kg-m	%FLT	%FLT	kg-m²	kg
Y₂355X1-2	250	335	2980	94.0	85	18.1	16.4	700	82	70	200	6.5	2240
Y₂355X2-2	280	375	2980	94.1	85	20.2	18.4	700	92	70	200	7	2340
Y₂355X3-2	315	420	2980	94.2	86	22.4	20.4	700	103	70	200	7.5	2440
Y₂355X4-2	355	475	2980	94.4	86	25.2	23.0	700	116	70	200	8	2600
Y₂400X1-2	400	535	2980	94.8	86	28.3	25.8	700	131	70	200	12	3200
Y₂400X2-2	450	605	2980	94.9	86	31.8	28.9	700	147	70	200	12.5	3320
Y₂400X3-2	500	670	2982	95.0	86	35.3	32.1	700	163	70	200	13	3470
Y₂400X4-2	560	750	2982	95.2	86	39.5	35.9	700	183	70	200	14	3650
Y₂450X1-2	630	845	2982	95.4	87	43.8	39.8	700	206	70	200	19	4320
Y₂450X2-2	710	950	2982	95.5	87	49.3	44.9	700	232	70	200	20	4470
Y₂450X3-2	800	1070	2985	95.6	87	55.5	50.5	700	261	70	200	21	4650
Y₂450X4-2	900	1205	2985	95.7	87	62.4	56.7	700	294	70	200	22	4830
Y₂355X1-4	250	335	1482	94.0	84	18.3	16.6	650	164	80	200	11	2400
Y₂355X2-4	280	375	1482	94.1	84	20.5	18.6	650	184	80	200	12	2500
Y₂355X3-4	315	420	1482	94.2	84	23.0	20.9	650	207	80	200	13	2620
Y₂355X4-4	355	475	1482	94.6	84	25.8	23.4	650	233	80	200	14	2770
Y₂400X1-4	400	535	1485	94.7	85	28.7	26.1	650	262	80	200	20	3250
Y₂400X2-4	450	605	1485	94.8	85	32.2	29.3	650	295	80	200	21	3400
Y₂400X3-4	500	670	1485	94.9	86	35.4	32.2	650	328	80	200	23	3580
Y₂400X4-4	560	750	1485	95.0	86	39.6	36.0	650	367	80	200	25	3820
Y₂450X1-4	630	845	1485	95.1	85	45.0	40.9	650	413	80	200	39	4970
Y₂450X2-4	710	950	1485	95.2	86	50.1	45.5	650	466	80	200	42	5190
Y₂450X3-4	800	1070	1485	95.3	86	56.4	51.2	650	525	80	200	45	5480
Y₂450X4-4	900	1205	1488	95.5	86	63.3	57.5	650	589	80	200	49	5780
Y₂500X1-4	1000	1340	1488	96.0	87	69.1	62.8	650	655	80	200	63	6620
Y₂500X2-4	1120	1500	1488	96.1	87	77.3	70.3	650	733	80	200	67	6900
Y₂500X3-4	1250	1680	1488	96.2	86	87.2	79.3	650	819	70	200	73	7280
Y₂560X1-4	1400	1880	1488	96.4	87	96.4	87.6	650	917	70	200	124	8780
Y₂560X2-4	1600	2140	1488	96.5	87	110.0	100.0	650	1048	70	200	132	9100
Y₂400X1-6	250	335	985	93.8	82	18.8	17.1	600	247	80	200	26.5	3100
Y₂400X2-6	280	375	985	94.0	82	21.0	19.1	600	277	80	200	26.5	3140
Y₂400X3-6	315	420	985	94.2	82	23.5	21.4	600	312	80	200	28	3320
Y₂400X4-6	355	475	985	94.4	82	26.5	24.1	600	351	80	200	31	3500
Y₂400X5-6	400	535	985	94.6	83	29.4	26.7	600	396	80	200	34	3740
Y₂450X1-6	450	605	988	94.7	83	33.1	30.0	600	444	80	200	43	4640
Y₂450X2-6	500	670	988	95.1	83	36.6	33.2	600	493	80	200	46	4840
Y₂450X3-6	560	750	990	95.2	83	40.9	37.2	600	551	80	200	50	5060
Y₂450X4-6	630	845	990	95.5	83	45.9	41.7	600	620	80	200	54	5360
Y₂500X1-6	710	950	992	95.6	83	51.7	47.0	600	697	70	200	69.5	6190
Y₂500X2-6	800	1070	992	95.7	83	58.2	52.9	600	786	70	200	74.5	6470
Y₂500X3-6	900	1210	992	95.9	84	64.5	58.6	600	884	70	200	84.5	7030
Y₂500X4-6	1000	1340	992	96.0	84	71.6	65.1	600	982	70	200	91	7410
Y₂560X1-6	1120	1500	992	96.2	84	80.0	72.7	600	1100	70	200	160	8600
Y₂560X2-6	1250	1680	992	96.0	84	89.5	81.4	600	1228	70	200	172	9020
Y₂560X3-6	1400	1880	992	96.0	84	100.2	91.1	600	1375	70	200	188	9540
Y₂400X1-8	220	295	740	93.6	76	17.9	16.2	550	290	80	200	35	3720
Y₂400X2-8	250	335	740	93.7	76	20.3	18.4	550	329	80	200	37.5	3900
Y₂400X3-8	280	375	740	93.8	76	22.7	20.6	550	369	80	200	40	4060
Y₂450X1-8	315	420	742	94.2	78	24.8	22.5	550	414	80	200	42	4520
Y₂450X2-8	355	475	742	94.4	78	27.8	25.3	550	466	80	200	45	4820
Y₂450X3-8	400	535	742	94.5	79	30.9	28.1	550	525	80	200	51	5040
Y₂450X4-8	450	605	742	94.6	79	34.8	31.6	550	591	80	200	57	5480
Y₂500X1-8	500	670	745	95.0	80	38.0	34.5	550	654	70	200	87	6080
Y₂500X2-8	560	750	745	95.1	80	42.5	38.6	550	733	70	200	96	6460
Y₂500X3-8	630	845	745	95.1	80	47.8	43.5	550	824	70	200	103	6740
Y₂500X4-8	710	950	745	95.5	81	53.0	48.2	550	929	70	200	109	7020
Y₂560X2-8	710	950	745	95.6	81	52.9	48.1	550	929	70	200	162	8690
Y₂560X3-8	800	1070	745	95.7	81	59.6	54.2	550	1046	70	200	172	9000
Y₂560X4-8	900	1205	745	95.6	81	67.1	61.0	550	1177	70	200	188	9520

●Y2 Series high voltage high effiency motors

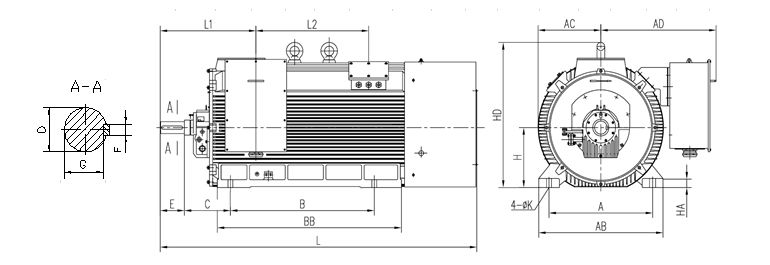

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K
315	2	560±1.4	800±1.4	216±4	65	+0.030	140±0.5	18	0	58	0	315	0	28	+0.52
						+0.011			-0.043		-0.2		-1		0
315	4	560±1.4	800±1.4	216±4	80	+0.030	170±0.5	22	0	71	0	315	0	28	+0.52
						+0.011			-0.052		-0.2		-1		0
355	2	630±1.4	900±1.4	254±4	75	+0.030	140±0.5	20	0	67.5	0	355	0	28	+0.52
						+0.011			-0.052		-0.2		-1		0
355	4～6	630±1.4	900±1.4	254±4	100	+0.035	210±0.57	28	0	90	0	355	0	28	+0.52
						+0.013			-0.052		-0.2		-1		0
400	2	710±1.75	1000±1.75	280±4	85	+0.035	170±0.5	22	0	76	0	400	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
400	4～8	710±1.75	1000±1.75	280±4	110	+0.035	210±0.57	28	0	100	0	400	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	2	800±1.75	1120±1.75	280±4	95	+0.035	170±0.5	25	0	86	0	450	0	35	+0.62
						+0.013			-0.052		-0.2		-1		0
450	4	800±1.75	1120±1.75	280±4	120	+0.035	210±0.57	32	0	109	0	450	0	35	+0.62
						+0.013			-0.062		-0.2		-1		0
450	6～8	800±1.75	1120±1.75	280±4	130	+0.04	250±0.57	32	0	119	0	450	0	35	+0.62
						+0.015			-0.062		-0.2		-1		0
500	4	900±2.1	1250±2.1	315±4	130	+0.04	250±0.57	32	0	119	0	500	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0
500	6～8	900±2.1	1250±2.1	315±4	140	+0.04	250±0.57	36	0	128	0	500	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	4	1000±2.1	1400±2.1	355±4	150	+0.04	250±0.57	36	0	138	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0
560	6～8	1000±2.1	1400±2.1	355±4	160	+0.04	300±0.65	40	0	147	0	560	0	42	+0.62
						+0.015			-0.062		-0.3		-1		0

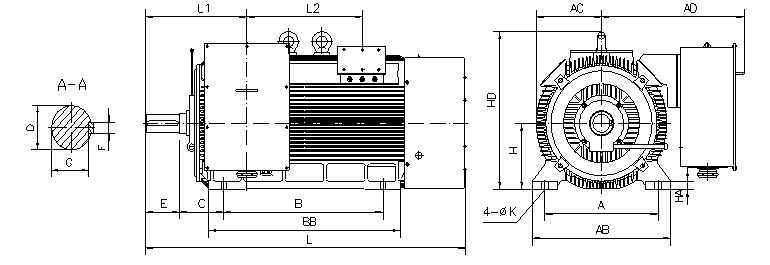

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
		AC	AD	AB	BB	HA	HD	L1	L2	L
315	2	350	760	680	1080	45	785	482	797	1740
315	4	350	760	680	1080	45	785	512	797	1770
355	2	400	785	760	1140	50	995	491	841	1800
355	4~6	400	785	760	1140	50	995	561	841	1870
400	2	445	920	870	1200	50	980	662	700	2000
400	4~8	445	920	870	1200	50	980	702	700	2040
450	2	500	950	980	1495	50	1140	670	921	2360
450	4	500	950	980	1495	50	1140	710	921	2400
450	6~8	500	950	980	1495	50	1140	750	921	2440
500	4~8	550	1010	1080	1600	65	1220	786	980	2530
560	4	610	1030	1170	1680	76	1480	812	970	2650
560	6~8	610	1030	1170	1680	76	1480	862	970	2700

●Y2 Series high voltage high effiency motors

● MOUNTING DIMENSIONS FOR INSTALLATION
Frame Size	Pole	MOUNTING
		A	B	C	D		E	F		G		H		K
500	2	900±2.1	1250±2.1	400±4	110	+0.035	210±0.57	28	0	100	0	500	0	42	+0.62
						+0.013			-0.052		-0.2		-1		0
560	2	1000±2.1	1400±2.1	450±4	120	+0.04	210±0.57	32	0	109	0	560	0	42	+0.62
						+0.015			-0.062		-0.2		-1		0

● OUTLINE DIMENSIONS FOR INSTALLATION
Frame Size	Pole	OUTLINE
		AC	AD	AB	BB	HA	HD	L1	L2	L
500	2	550	1010	1080	1600	65	1220	831	980	2760
560	2	610	1030	1170	1680	76	1480	862	970	2850

Technical characteristics

Electrical performance data

Mechanical dimension data

Product advantages

APPLICATIONS

Product technical standards

Product use environment
