HIGH EFFICIENCY MOTORS (IE3)-全部产品-无锡欧瑞京电机

Totally enclosed fan-cooled motors are designed according to IEC, GB and other standards.

The frames are made of cast iron, while terminal boxes can be made of steel plate.
The efficiency can meet the requirements of GB18613-2012 and IEC60034-30 standards.

Motors with frame 80-132 that are equipped with gasket sealing on DE are standard, and the standard for frame 160 and above motors are with sealing on DE.

Winding designs can support several kinds of voltage and frequency (50HZ or 60HZ).

It can stand 1.5 times more of rated current within 2 minutes (IEC60034-1).

Heater can be added to prevent moisture.

PTC, PT100 and other thermal elements can be chose to protect winding and bearings.

Product advantages

New winding designs and low loss silicon steel sheets are applied to decrease the motors loss and improve the efficiency.

In order to insure the good insulation and extend the lifetime, standard motors are according to F/B.

According to Class A voltage and frequency tolerance demands in IEC60034-1 standard, the motor’s voltage tolerance is ±5%, and the frequency tolerance is ±2%

Efficiency improvement

New winding designs and low loss silicon steel sheets are applied to decrease the motors loss and improve the efficiency.

Reliable quality and superior characteristics

In order to insure the good insulation and extend the lifetime, standard motors are according to F/B.

Voltage, Efficiency

According to Class A voltage and frequency tolerance demands in IEC60034-1 standard, the motor’s voltage tolerance is ±5%, and the frequency tolerance is ±2%.

Rated output

Rated output means it can meet IEC 600341 standard, continuous working can output when coolant temperature (CT) is 40℃ and the altitude of working site is under 1000m. Besides, the motors can stand 1.5 times more of rated current within 2 minutes under rated voltage and frequency.

APPLICATIONS

Motors can be applied to all kinds of machines, such as machine tool, air compressor, pump, ventilation, reduction gear, transmission belt, mining equipment, metallic equipment. However, motors can’t be used with inflammable, explosive and corrosive working site.

Product technical standards

名称Title	IEC标准 IEC standard	中国国家标准 Chinese standard
旋转电动机定额和性能 Rotating electrical machines-Part I:Rating and performance	IEC 60034-1	GB 755
旋转电动机损耗与效率确定的标准测试方法 losses and efficiency from tests(excluding machines for traction vehicles)	IEC 60034-2	GB/T 1032
旋转电机整体结构的防护等级（IP代码）分级 Rotating electrical machines-Part 5:Degrees of protection provided by the integral design of rotating electrical machines(IP code) -Classification	IEC 60034-5	GB/T 4942.1
旋转电动机冷却方法 Rotating electrical machines-Part6: Methods of cooling( IC Code)	IEC 60034-6	GB/T 1993
旋转电动机结构犁式、安装型式及接线盒位置的分类（IM代码） Rotating electrical machines-Part7: Classification of types of construction, mounting arrangements and terminal box position( IM Code)	IEC 60034-7	GB/T 997
旋转电动机旋转电机线端标志与旋转方向 Rotating electrical machines-Part8: Terminal markings and direction of rotation	IEC 60034-8	GB/T 1971
旋转电机噪声测定方法及限值第9部分：噪声限值 Rotating electrical machines-Part9: Noise limits	IEC 60034-9	GB 10069.3
轴中心高为56mm及以上电机的机械振动振动的测量、评定及限值 Rotating electrical machines-Part14: Mechanical vibration of certain machines with shaft heights 56 mm and higher- Measurement, evaluation and limits of vibration severity	IEC 60034-14	GB 10068
旋转电机尺寸和输出功率等级第1部分：机座号56-400和凸缘号55-1080 Rotating electrical machines-Partl: Frame numbers 56 t0 400 and flange numbers 55 to 1080	IEC 60072-1	GB/T 4772.1
中小型旋转电机安全耍求 Safety requirments of small and medium size rotating electrical machines		GB 144711
旋转电动机温升 Electrical insulation-Thermal classification	IEC 60085	GB/T 11021
电工电子产品自然环境条件温度和湿度 Classification of environmental conditions Part 2-1: Environmental conditions appearing in nature-Temperature and humidity	IEC 60072-2-1	GB/T 4797.1
标准电压 Standard voltages	IEC 60038	GB/T 156

Product use environment

环境
适台IP55防护等级的安装
低于或等于海拔i1000米
环境温度在-15℃-40℃
相对湿度

Operating Environment
Suitable for IP55 installations
Altitude not exceed 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

温度 Temperature	相对湿度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果环境温度和海拔高度不同，电机功率要考虑以下系数作造型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia(J)	Approx WT
	Rated Power		Rated Speed	Efficiency	Power Factor	FULL Load 400V	FULL Load 690V	Locked Rotor	Full Load	Locked Rotor	Pull Out	Moment of inertia(J)	Approx WT
	KW	(HP)	RPM	%		A	A	%FLC	Kg-m	%FLT	%FLT	Kg-m²	Kg
IE3-80K2	0.75	1.0	2845	82.1	0.82	1.6	0.9	7.5	0.3	2.2	2.3	0.0011	18
IE3-80G2	1.1	1.5	2865	83.8	0.83	2.3	1.3	7.4	0.4	2.1	2.2	0.0013	19
IE3-80G4	0.75	1.0	1410	84.0	0.75	1.7	1.0	7.3	0.5	2.3	2.3	0.0017	20
IE3-90S2	1.5	2.0	2875	85.0	0.84	3.0	1.8	7.5	0.5	2.1	2.2	0.0019	24
IE3-90L2	2.2	3.0	2865	86.4	0.85	4.3	2.5	7.5	0.7	2.2	2.3	0.0022	27
IE3-90S4	1.1	1.5	1415	85.3	0.76	2.4	1.4	7.5	0.7	2.3	2.6	0.0021	24
IE3-90L4	1.5	2.0	1420	86.3	0.77	3.3	1.9	7.6	1.0	2.4	2.7	0.0027	30
IE3-90S6	0.75	1.0	905	80.6	0.69	1.9	1.1	6.3	0.8	2.0	2.3	0.0032	25
IE3-90L6	1.1	1.5	910	82.4	0.70	2.8	1.6	6	1.2	1.9	2.3	0.0041	27
IE3-100L2	3	4.0	2860	87.5	0.87	5.7	3.3	7.6	1.0	2.0	2.2	0.0043	36
IE3-100L4	2.2	2.9	1420	87.5	0.77	4.7	2.7	7.5	1.5	2.4	2.7	0.0054	37
IE3-100LX4	3	4.0	1440	88.4	0.78	6.3	3.6	7.4	2.0	2.5	2.8	0.0067	41
IE3-100L6	1.5	2.0	925	83.8	0.70	3.7	2.1	6.4	1.5	2.0	2.5	0.0085	36
IE3-112M2	4	5.5	2870	88.4	0.88	7.4	4.3	7.5	1.3	2.2	2.3	0.0065	43
IE3-112M4	4	5.5	1445	89.2	0.78	8.3	4.8	7.6	2.6	2.4	2.7	0.0086	48
IE3-112M6	2.2	3.0	920	85.4	0.70	5.3	3.1	6.5	2.3	2.0	2.8	0.0133	42
IE3-132S2	5.5	7.5	2880	89.4	0.88	10.1	5.8	7.4	1.8	2.1	2.2	0.0146	65
IE3-132SX2	7.5	10.0	2925	90.3	0.88	13.6	7.9	7.5	2.4	2.2	2.4	0.0147	70
IE3-132S4	5.5	7.5	1460	90.0	0.79	11.2	6.5	7.5	3.6	2.3	2.6	0.0205	71
IE3-132M4	7.5	10.0	1466	90.8	0.80	14.9	8.6	7.7	4.9	2.4	2.7	0.0296	83
IE3-132S6	3	4.0	930	86.6	0.71	7.0	4.1	6.3	3.1	2.0	2.7	0.0372	63
IE3-132M6	4	5.5	945	87.7	0.72	9.1	5.3	6.2	4.0	2.1	3.0	0.0489	80
IE3-132MX6	5.5	7.5	965	88.7	0.72	12.4	7.2	6	5.4	1.9	2.8	0.0585	85
IE3-160L2	11	15	2960	91.2	0.89	19.6	11.3	8.4	4	3.1	3.7	0.0510	116
IE3-160LX2	15	20	2940	91.9	0.88	26.9	15.6	7.8	5	2.6	2.9	0.0637	126
IE3-160LY2	18.5	25	2940	92.4	0.88	32.8	19.0	7.6	6	2.3	3.0	0.0765	145
IE3-160L4	11	15	1475	91.7	0.85	20.4	11.8	7.8	7	2.5	3.1	0.1068	128
IE3-160LX4	15	20	1475	92.3	0.81	29.0	16.8	7.8	10	2.9	3.3	0.1287	149
IE3-160L6	7.5	10	975	89.7	0.74	16.3	9.4	6.0	7	1.9	3.0	0.1170	135
IE3-160LX6	11	15	975	90.8	0.75	23.3	13.5	6.7	11	2.1	2.7	0.1775	140
IE3-180M2	22	30	2950	92.7	0.88	38.8	22.5	7.9	7	2.7	3.6	0.1170	185
IE3-180M4	18.5	25	1475	92.7	0.82	35.3	20.5	7.9	12	2.5	3.6	0.1901	185
IE3-180L4	22	30	1475	93.1	0.80	42.9	24.9	7.8	14	2.5	3.8	0.2264	200
IE3-180L6	15	20	985	91.6	0.77	30.9	17.9	6.3	15	2.1	3.1	0.3158	190
IE3-200L2	30	40	2960	93.3	0.87	53.3	30.9	7.4	10	2.4	3.4	0.1737	237
IE3-200LX2	37	50	2960	93.7	0.87	65.8	38.2	7.6	12	2.4	3.3	0.2048	251
IE3-200L4	30	40	1480	93.6	0.81	56.8	32.9	8.8	19	2.7	3.5	0.3612	258
IE3-200L6	18.5	25	985	92.1	0.77	37.6	21.8	7.3	18	2.4	3.1	0.4684	257
IE3-200LX6	22	30	985	92.5	0.78	44.1	25.6	7.5	21	2.4	3.1	0.5483	308
IE3-225M2	45	60	2950	94.0	0.88	78.6	45.6	7.8	15	2.3	3.4	0.3020	320
IE3-225S4	37	50	1485	94.0	0.68	83.4	48.4	6.6	24	3.2	3.9	0.6300	314
IE3-225M4	45	60	1485	94.3	0.84	82.0	47.5	7.8	29	3.2	3.7	0.7384	347
IE3-225M6	30	40	985	93.1	0.82	56.9	33.0	6.8	29	2.6	3.1	0.8842	315
IE3-250M2	55	75	2970	94.3	0.89	94.5	54.8	7.1	18	2.0	3.3	0.4077	396
IE3-250M4	55	75	1485	94.5	0.86	98.1	56.9	7.7	35	2.5	3.6	1.0236	405
IE3-250M6	37	50	985	93.5	0.84	68.4	39.7	7.3	36	2.3	3.4	1.1968	410
IE3-280S2	75	100	2975	94.7	0.88	129.5	75.1	6.3	24	2.0	2.9	0.7988	550
IE3-280M2	90	120	2980	95.0	0.88	155.4	90.1	7.7	29	2.5	3.7	1.0708	580
IE3-280S4	75	100	1490	95.0	0.85	134.7	78.1	7.3	48	2.6	3.2	2.0828	610
IE3-280M4	90	120	1490	95.2	0.86	158.9	92.1	7.6	58	2.6	3.4	2.5457	670
IE3-280S6	45	60	990	93.9	0.84	82.0	47.5	7.4	43	2.7	3.5	2.3382	475
IE3-280M6	55	75	990	94.2	0.84	100.4	58.2	8.0	53	3.2	4.0	2.7975	550
IE3-315S2	110	145	2970	95.2	0.90	184.7	107.1	7.4	35	2.0	3.2	2.0314	970
IE3-315M2	132	175	2975	95.4	0.91	220.4	127.8	7.0	42	1.8	2.9	2.2065	1030
IE3-315L2	160	215	2970	95.6	0.90	269.3	156.1	6.6	51	1.8	3.0	2.4867	1140
IE3-315LX2	200	270	2965	95.8	0.91	332.6	192.8	6.4	64	1.9	3.0	2.9069	1220
IE3-315S4	110	145	1490	95.4	0.85	195.1	113.1	7.8	71	3.0	3.9	3.4904	970
IE3-315M4	132	175	1490	95.6	0.88	226.7	131.4	8.0	85	2.9	4.0	4.0139	1060
IE3-315L4	160	215	1490	95.8	0.86	279.0	161.7	7.9	103	3.0	4.1	5.2356	1160
IE3-315LX4	200	270	1490	96.0	0.89	339.8	197.0	6.1	128	2.7	3.3	5.7010	1270
IE3-315S6	75	100	990	94.7	0.83	138.2	80.1	7.4	72	2.5	3.4	4.7411	915
IE3-315M6	90	120	990	94.9	0.83	164.5	95.4	7.6	87	2.7	3.6	5.8225	996
IE3-315L6	110	145	990	95.2	0.84	198.8	115.2	7.7	106	2.8	3.7	6.6542	1175
IE3-315LX6	132	175	990	95.4	0.84	238.6	138.3	7.8	127	2.8	3.7	7.9851	1225
IE3-355M2	250	335	2980	95.8	0.90	417.1	241.8	7.7	80	2.0	3.5	3.8123	1780
IE3-355L2	280	375	2975	95.8	0.91	464.1	269.0	6.9	90	1.7	3.1	3.8123	1790
IE3-355LX2	315	420	2980	95.8	0.92	515.9	299.1	8.2	101	2.1	3.8	4.4632	1808
IE3-355LY2	355	475	2975	95.8	0.91	587.8	340.7	7.2	114	1.9	3.4	4.4632	1828
IE3-355M4	250	335	1490	96.0	0.89	423.3	245.4	7.3	160	2.3	3.5	9.2972	1815
IE3-355L4	280	375	1490	96.0	0.89	471.4	273.3	6.5	180	2.0	3.1	9.2972	1915
IE3-355LX4	315	420	1490	96.0	0.88	537.0	311.3	7.0	202	2.3	3.4	10.2863	2000
IE3-355LY4	355	475	1490	96.0	0.89	597.7	346.5	7.2	228	2.2	3.3	11.2754	2060
IE3-355M6	160	215	990	95.6	0.85	285.2	165.3	7.0	154	1.9	3.3	10.3863	1790
IE3-355MX6	185	250	990	95.8	0.85	329.9	191.2	7.3	178	2.0	3.4	10.8930	1840
IE3-355MY6	200	270	990	95.8	0.85	354.9	205.8	7.1	193	1.9	3.3	12.4130	1890
IE3-355L6	220	300	990	95.8	0.85	390.0	226.1	7.4	212	2.0	3.5	13.1729	1905
IE3-355LX6	250	335	990	95.8	0.87	434.0	251.6	6.7	241	1.8	2.9	13.9329	1920
IE3-355LY6	280	375	990	95.8	0.86	491.7	285.0	7.1	270	1.9	3.1	14.6929	2106

OMT1-IE3 SERIES

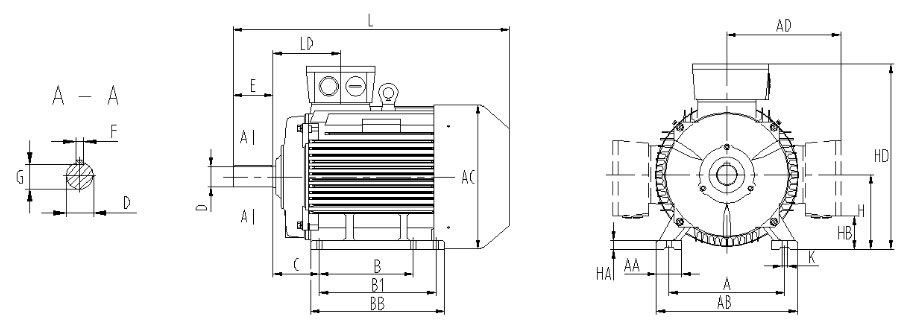

B3：Dimension Drawings
The shaft dimension will be showed in anther table

Frame	Pole	Mounting dimension						Overall dimension
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	HD		L	LD
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	上出线	左右出线	L	LD
80	2-8	125	100	-	50	80°-0.5	10	34	160	165	165	142	10	40	240	165	300	78
90S	2-8	140	100	-	56	90°-0.5	10	36	176	173	170	180	12	50	250	180	355	80
90L	2-8	140	125	-	56	90°-0.5	10	36	176	173	170	210	12	50	250	180	385	80
100L	2-8	160	140	-	63	100°-0.5	12	40	200	200	180	233	14	60	280	208	435	85
112M	2-8	190	140	-	70	112°-0.5	12	45	230	220	190	180	15	60	305	222	420	87
132S	2-8	216	140	-	89	132°-0.5	12	55	265	260	220	190	18	65	355	262	465	102
132M	2-8	216	178	-	89	132°-0.5	12	55	265	260	220	230	18	65	355	262	505	102
160L	2-8	254	210	254	108	160°-0.5	15	65	315	315	265	305	20	81	425	385	652	146
180M	2.4	279	241	-	121	180°-0.5	15	70	350	360	280	315	22	105	460	420	690	161
180L	4-8	279	279	-	121	180°-0.5	15	70	350	360	280	350	22	105	460	420	730	161
200L	2-8	318	305	-	133	200°-0.5	19	70	390	400	310	370	25	85	510	475	760	186
225S	4-8	356	286	-	149	225°-0.5	19	75	435	450	335	370	28	110	555	535	810	189
225M	2	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	805	189
225M	4-8	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	835	189
250M	2	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	110	625	570	910	207
250M	4-8	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	120	625	570	910	207
280S	2	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	985	215
280S	4-8	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	1005	215
280M	2	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1030	215
280M	4-8	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1060	215
315S	2	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1180	257
315S	4-8	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1210	257
315M	2	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1290	257
315L	4-8	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1320	257
355	2	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1526	284
355	4-8	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1556	284

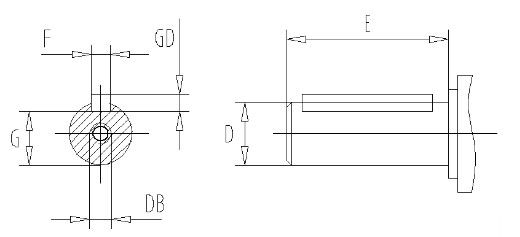

Shaft Dimension Drawings

Frame	Pole	D	E	F	G	GD	DB
80	2、4、6、8	19j6(+0.009 -0.004)	40	6	15.5	6	M6
90S	2、4、6、8	24j6(+0.009 -0.004)	50	8	20	7	M8
90L	2、4、6、8	24j6(+0.009 -0.004)	50		20		M8
100L	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
112M	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
132S	2、4、6、8	38k6(+0.018 -0.002)	80	10	33	8	M12
132M	2、4、6、8	38k6(+0.018 -0.002)	80	10	33		M12
160L	2、4、6、8	42k6(+0.018 -0.002)	110	12	37		M16
180M	2.4	48k6(+0.018 -0.002)		14	42.5	9
180L	4、6、8	48k6(+0.018 -0.002)		14	42.5	9
200L	2	55m6(+0.03 -0.011)		16	49	10	M20
200L	4、6、8	55m6(+0.03 -0.011)		16	49	10
225S	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
225M	2	55m6(+0.03 -0.011)	110	16	49	10
225M	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
250M	2	60m6(+0.03 -0.011)			53	11
250M	4、6、8	65m6(+0.03 -0.011)			58	11
280S	2	65m6(+0.03 -0.011)			58	11
280S	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
280M	2	65m6(+0.03 -0.011)		18	58	11
280M	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
315S	2	65m6(+0.03 -0.011)	140	18	58	11
315S	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
315M	2	65m6(+0.03 -0.011)	140	18	58	11
315L	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
355	2	75m6(+0.03 -0.011)	140	20	67.5	12
355	4、6、8	95m6(+0.035 -0.013)	170	25	86	14

Technical characteristics

Electrical performance data

Mechanical dimension data

Product advantages

APPLICATIONS

Product technical standards

Product use environment
