ALUMINUM MOTORS

ALUMINUM MOTORS

ALUMINUM MOTORS

Product technical characteristics

Electrical performance data of products

Mechanical dimension data of products

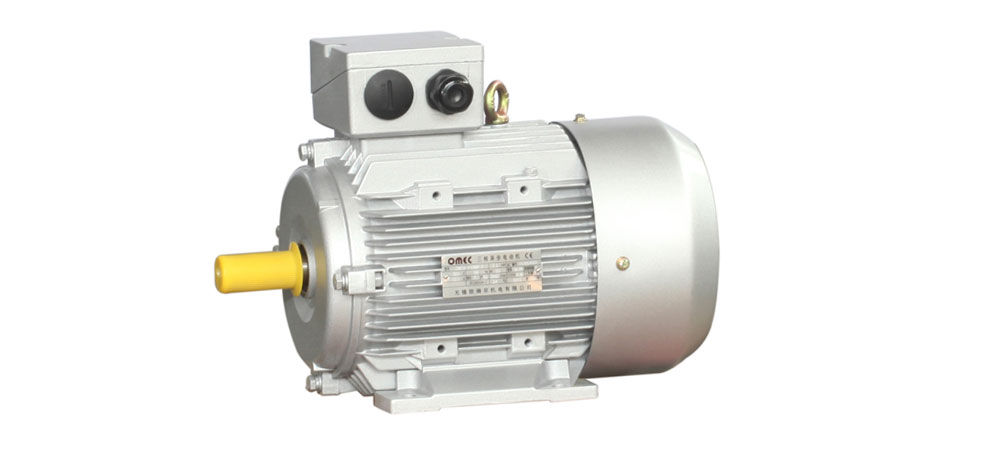

Totally enclosed fan-cooled aluminum motors are designed according to IEC, GB and other standards.

Power range: 0.8KW~18.5KW

Frame range: H63-H160

Frame material: cast aluminum

Standard mounting: IEC60034-F

Standard protection: IEC60034-5

Specific winding can support various voltages (50HZ or 60HZ).

Cooling: IC411

Connection: Y connection with power 3kw and below, △ connection with power 4kw and above, or design and produced with special requirement.

Product advantage

Product application area

Product technical standard

Please check with OMEC engineers.

Product usage environment

环境
适台IP55防护等级的安装
低于或等于海拔i1000米
环境温度在-15℃-40℃
相对湿度

Operating Environment
Suitable for IP55 installations
Altitude not exceed 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

温度 Temperature	相对湿度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果环境温度和海拔高度不同，电机功率要考虑以下系数作选型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

Motor Type	Rated Power	Current 400V	Rated Speed	Power Factor	Effciency	Loc1ed Current Rated Current	Loc1ed Torque Rated Torque	Maximum Torque Rated Torque	Moment Of inertia	Wei2ht
	PN 1W	IN A	nN r/min	COSφ	η %	IS/IN	MS/MN	MM/MN	J=2 kgm2	kg
380V 50Hz 2极
MS-HE801-2	0.75	1.64	2845	0.82	80.5	7.0	2.2	2.3	0.0011	9
MS-HE802-2	1.1	2.31	2865	0.83	82.8	7.4	2.2	2.3	0.0013	9.9
MS-HE90S-2	1.5	3.06	2875	0.84	84.1	7.0	2.2	2.3	0.00185	13.7
MS-HE90L-2	2.2	4.36	2865	0.85	85.6	7.0	2.2	2.3	0.00215	15.4
MS-HE100L-2	3.0	5.74	2860	0.87	86.7	7.5	2.2	2.5	0.00425	22.5
MS-HE112M-2	4.0	7.49	2880	0.88	87.6	7.5	2.2	2.5	0.0065	28.5
MS-HE132S1-2	5.5	10.2	2925	0.88	88.6	7.5	2.2	2.5	0.01456	44
MS-HE132S2-2	7.5	13.7	2930	0.88	89.5	7.5	2.2	2.5	0.01565	49
MS-HE160M1-2	11.0	19.7	2935	0.89	90.5	7.5	2.2	2.5	0.0549	74.
MS-HE160M2-2	15.0	26.6	2935	0.89	91.3	7.5	2.2	2.5	0.0635	82.
MS-HE160L-2	18.5	32.3	2935	0.90	91.8	7.5	2.2	2.5	0.0725	90.

Motor Type	Rated Power	Current 400V	Rated Speed	Power Factor	Effciency	Loc1ed Current Rated Current	Loc1ed Torque Rated Torque	Maximum Torque Rated Torque	Moment Of inertia	Wei2ht
	PN 1W	IN A	nN r/min	COSφ	η %	IS/IN	MS/MN	MM/MN	J=2 kgm2	kg
380V 50Hz 4极
MS-HE802-4	0.75	1.73	1410	0.76	82.3	6.5	2.3	2.3	0.00165	10.5
MS-HE90S-4	1.1	2.46	1420	0.77	83.8	7.1	3.1	3.4	0.00232	13.8
MS-HE90L-4	1.5	3.22	1420	0.79	85.0	7.1	3.2	3.4	0.00312	16.5
MS-HE100L1-4	2.2	4.54	1440	0.81	86.4	7.8	3.0	3.5	0.00779	21.5
MS-HE100L2-4	3.0	6.04	1445	0.82	87.4	7.5	2.8	3.4	0.00865	25.3
MS-HE112M-4	4.0	7.97	1460	0.82	88.3	7.2	2.5	3.5	0.01185	32.0
MS-HE132S-4	5.5	10.7	1450	0.83	89.2	7.1	2.4	3.3	0.03301	47.0
MS-HE132M-4	7.5	14.3	1455	0.84	90.1	7.6	2.5	3.8	0.04121	58.0
MS-HE160M-4	11.0	20.8	1465	0.84	91.0	6.9	2.1	2.8	0.1052	84.0
MS-HE160L-4	15.0	27.7	1470	0.85	91.8	7.5	2.3	3.1	0.1123	91.0

Motor Type	Rated Power	Current 400V	Rated Speed	Power Factor	Effciency	Loc1ed Current Rated Current	Loc1ed Torque Rated Torque	Maximum Torque Rated Torque	Moment Of inertia	Wei2ht
	PN 1W	IN A	nN r/min	COSφ	η %	IS/IN	MS/MN	MM/MN	J=2 kgm2	kg
380V 50Hz 6极
MS-HE90S-6	0.75	2.00	925	0.72	77.7	5.5	2.0	2.3	0.00321	14
MS-HE90L-6	1.1	2.76	920	0.73	79.9	5.5	2.0	2.3	0.00412	16
MS-HE100L-6	1.5	3.52	930	0.75	81.5	5.5	2.0	2.2	0.00845	20
MS-HE112M-6	2.2	5.05	945	0.76	83.4	6.5	2.0	2.2	0.01326	30
MS-HE132S-6	3.0	6.76	965	0.76	84.9	6.5	2.1	2.5	0.03716	45
MS-HE132M1-6	4.0	8.86	965	0.76	86.1	6.5	2.1	2.5	0.04889	58/
MS-HE132M2-6	5.5	11.8	965	0.77	87.4	6.5	2.1	2.5	0.05845	62
MS-HE160M-6	7.5	15.9	970	0.77	88.5	6.5	2.0	2.3	0.1212	79.
MS-HE160L-6	11	22.7	970	0.78	99.8	6.4	2.0	2.3	0.1452	82

Motor Type	Rated Power	Current 400V	Rated Speed	Power Factor	Effciency	Loc1ed Current Rated Current	Loc1ed Torque Rated Torque	Maximum Torque Rated Torque	Moment Of inertia	Wei2ht
	PN 1W	IN A	nN r/min	COSφ	η %	IS/IN	MS/MN	MM/MN	J=2 kgm2	kg
380V 50Hz 8极
MS-HE100L18	0.75	2.20	725	0.73	84.2	6.0	2.1	2.2	0.00765	21
MS-HE100L28	1.1	3.02	730	0.74	85.8	6.0	2.1	2.2	0.00812	26
MS-HE112M8	1.5	4.00	730	0.75	87.2	6.0	2.0	2.2	0.01326	32
MS-HE132S8	2.2	5.53	730	0.74	85.8	6.0	2.1	2.2	0.04109	53
MS-HE132M8	3.0	7.17	730	0.75	87.2	6.0	2.0	2.2	0.05241	59
MS-HE160M18	4.0	9.39	725	0.73	84.2	6.0	2.1	2.2	0.0889	73
MS-HE160M28	5.5	12.5	730	0.74	85.8	6.0	2.1	2.2	0.0958	78
MS-HE160L8	7.5	16.6	730	0.75	87.2	6.0	2.0	2.2	0.1021	84

MS、MS-HE系列
B5：安装及MOUNTING
图中：轴伸及第二轴伸安装尺寸见另表

Frame	Pole	MOUNTING						MOUNTING
		M	N	P	R	S	T	AC	AD	L	LA	LC	LD
56	2、4	100	80	120	0	Φ7	3	108	93	192	9	217	61
63	2、4	115	95	140	0	Φ10	3	120	97	215	9	243	61
71	2-6	130	110	160	0	Φ10	3	140	104	245	10	280	72
80	2-8	165	130	200	0	Φ12	4	160	113	295	12	340	82
90S	2-8	165	130	200	0	Φ12	4	175	123	340	12	395	82
90L	2-8	165	130	200	0	Φ12	4	175	123	340	12	395	82
100L	2-8	215	180	250	0	Φ15	4	195	157	385	13	450	92
112M	2-8	215	180	250	0	Φ15	4	220	163	395	14	460	94
132S	2-8	265	230	300	0	Φ15	4	265	183	510	14	595	106
132M	2-8	265	230	300	0	Φ15	4	265	183	510	14	595	106
160M	2-8	300	250	350	0	Φ19	5	320	223	606	15	721	146
160L	2-8	300	250	350	0	Φ19	5	320	223	650	15	765	146

注：R为凸缘配合面到轴伸肩的距离

B14：安装及外形尺

Frame	Pole	MOUNTING									MOUNTING
		D	E	F	G	M	N	P	R	S	T	AC	AD	L	LD
56	2、4	9	20	3	7	65	50	80	0	M5	2	108	93	192	61
63	2、4	11	23	4	8.5	75	60	90	0	M5	2.5	120	97	211	61
71	2-6	14	30	5	11	85	70	105	0	M6	2.5	140	104	240	72
80	2-8	19	40	6	15.5	100	80	120	0	M6	3	160	113	284	82
90S	2-8	24	50	8	20	115	95	140	0	M8	3	175	123	316	82
90L	2-8	24	50	8	20	115	95	140	0	M8	3	175	123	341	82
100L	2-8	28	60	8	24	130	110	160	0	M8	3.5	195	157	377	92
112M	2-8	28	60	8	24	130	110	160	0	M8	3.5	220	163	392	94
132S	2-8	38	80	10	33	165	130	200	0	M10	3.5	265	183	463	106
132M	2-8	38	80	10	33	165	130	200	0	M10	3.5	265	183	501	106
160M	2-8	42	110	12	37	215	180	250	0	M12	4	320	223	606	146
160L	2-8	42	110	12	37	215	180	250	0	M12	4	320	223	650	146

注：R为凸缘配合面到轴伸肩的距离

B3：安装及MOUNTING 图中：
轴伸及第二轴伸安装尺寸见另表

Frame	Pole	MOUNTING						MOUNTING
		A	B	C	CA	H	K	AA	AB	AC	BB	HA	HD	L	LC	LD
56	2、4	90	71	36	70	56°_-0.5	6	25	110	120	90	7	149	192	217	61
63	2、4	100	80	40	77	63°_-0.5	7	30	120	120	105	8	160	215	243	61
71	2-6	112	90	45	85	71°_-0.5	7	30	136	150	106	9	175	245	280	72
80	2-8	125	100	50	110	80°_-0.5	10	41	150	170	130	10	225	295	340	82
90S	2-8	140	100	56	139	90°_-0.5	10	47	168	190	165	12	245	340	395	82
90L	2-8	140	125	56	114	90°_-0.5	10	47	168	190	165	12	245	340	395	82
100L	2-8	160	140	63	127	100°_-0.5	12	45	190	206	176	12	280	385	450	92
112M	2-8	190	140	70	130	112°_-0.5	12	53	220	230	180	14	305	395	460	94
132S	2-8	216	140	89	201	132°_-0.5	12	60	252	265	224	15	355	510	595	106
132M	2-8	216	178	89	163	132°_-0.5	12	60	252	265	224	15	355	510	595	106
160M	2-8	254	210	108	183	160°_-0.5	15	73	310	320	325	20	425	606	721	146
160L	2-8	254	254	108	183	160°_-0.5	15	73	310	320	325	20	425	650	765	146

B35：安装及MOUNTING
图中：轴伸及第二轴伸安装尺寸见另

Frame	Pole	MOUNTING												MOUNTING
		A	B	C	CA	H	K	M	N	P	R	S	T	AA	AB	AC	BB	HA	HD	L	LA	LC	LD
56	2、4	90	71	36	70	56°_-0.5	6	100	80	120	0	4-Φ7	3	25	110	120	90	7	149	192	9	217	61
63	2、4	100	80	40	77	63°_-0.5	7	115	95	140	0	4-Φ10	3	30	120	120	105	8	160	211	9	239	61
71	2-6	112	90	45	85	71°_-0.5	7	130	110	160	0	4-Φ10	3	30	136	150	106	9	175	240	10	275	72
80	2-8	125	100	50	110	80°_-0.5	10	165	130	200	0	4-Φ15	4	41	150	170	130	10	225	284	12	329	82
90S	2-8	140	100	56	139	90°_-0.5	10	165	130	200	0	4-Φ12	4	47	168	190	165	12	245	316	12	371	82
90L	2-8	140	125	56	114	90°_-0.5	10	165	130	200	0	4-Φ12	4	47	168	190	165	12	245	341	12	396	82
100L	2-8	160	140	63	127	100°_-0.5	12	215	180	250	0	4-Φ15	4	45	190	206	176	12	280	377	13	442	92
112M	2-8	190	140	70	130	112°_-0.5	12	215	180	250	0	4-Φ15	4	53	220	230	180	14	305	392	14	457	94
132S	2-8	216	140	89	201	132°_-0.5	12	265	230	300	0	4-Φ15	4	60	252	265	224	15	355	463	14	548	106
132M	2-8	216	178	89	163	132°_-0.5	12	265	230	300	0	4-Φ15	4	60	252	265	224	15	355	501	14	586	106
160M	2-8	254	210	108	183	160°_-0.5	15	300	250	350	0	4-Φ19	5	73	310	320	325	20	425	606	15	721	146
160L	2-8	254	254	108	183	160°_-0.5	15	300	250	350	0	4-Φ19	5	73	310	320	325	20	425	650	15	765	146

注：R为凸缘配合面到轴伸肩的距离
