OMT3 Series High Efficiency Motor OMT3-180M0-02P 22kW 400/690V 50Hz

OMT3 Series High Efficiency Motor OMT3-180M0-02P 22kW 400/690V B3/B35/B5/V1

Data Sheet

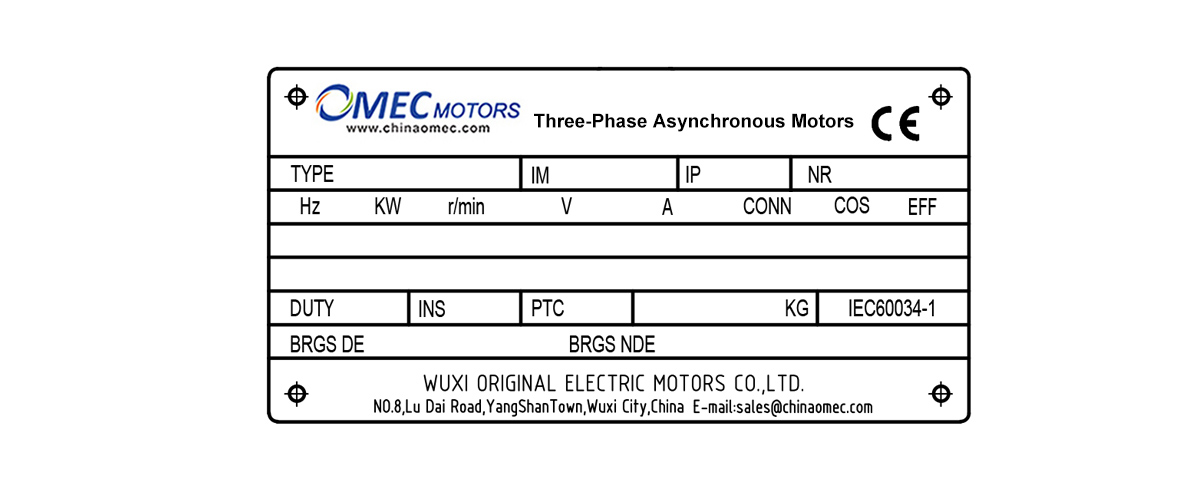

nameplate parameter table

External view of installation method

WUXI ORIGINAL MECHANICAL & ELECTRICAL Co.,Ltd
Data Sheet							No.	OMEC-3736
Three Phase Induction Motor							Drawing No	OMT3-180M0-02~04P B3
Type				OMT3-180M0-02P 22kW 400/690V 50Hz
Identification
Frame			180		mm	Insulation Class		F
Outpu			22		kW	Temperature Rise		80K
Frequency			50		Hz	Service Factor		1.0
Poles			2		P	Duty		S1
Rated Speed			2940		Rpm	Ambient Temperature		-20～40°C
Slip			2		%	Altitude		1000m
Rated Voltage			400/690		V	Protection Degree		IP55
Connection			△/Y			Cooling		IC411
Rated Current			38.5/22.3		A	Mounting		IM B3/B35/B5/V1
Rotor Voltage			-			Vibration		1.8 mm/s
Rotor Connection			-			Approx. Weight		174 kg
Rotor Current			-			Moment of Inertia		0.09693 kg-m2
Locked Rotor Current			850		%	Noise Level(Lp)		80
No Load Current			-			Direction of Rotation		BOTH
Rated Torque			71.46		Nm	Starting Method		DIRECT ON LINE
Locked Rotor Torque			200		%	Coupling		DIRECT
Breakdown Touque			230		%	Load Type		-
Performance						Bearing Information
Output		50%		75%	100%			DE	NDE
Efficiency(%)：		89.9		92.9	92.7	Bearing		6311 2RZC3	6311 2RZC3
						Regreasing int(h)		-	-
Power Factor		0.76		0.85	0.89	Grease amount(g)		-	-
						Grease-PolyrexEM		-	-
Standards						Notes / Accessories
Specification	IEC60034-1 / GB/T755					-
Test	IEC60034-2 / GB/T1032					-
Noise	IEC60034-9 / GB/T10069.1					-
Vibration	IEC60034-14 / GB/T10068
